HT2018
€53.19
Tax excluded
Shipped within 1 - 2 days

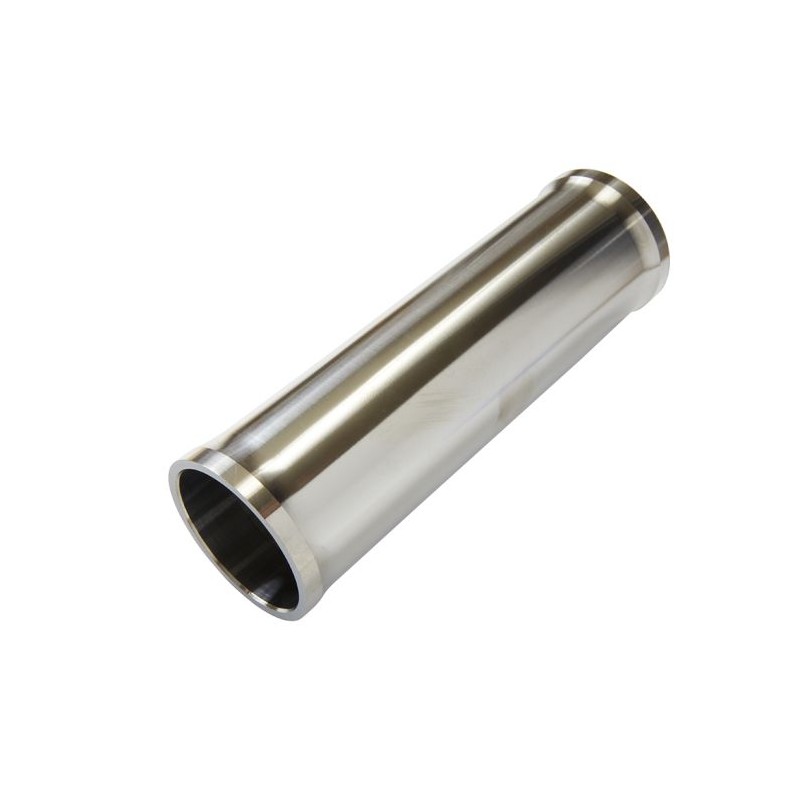

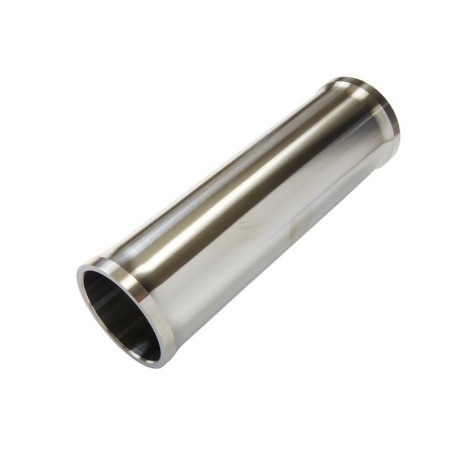

HT2018: Steel 44 mm, 170 mm Long, 1-7/8" x 50 mm OD
Paragon Machine Works
Item sold individually.
- Applications:
- Accepts all 44 mm headset cups
- Forks with 1-1/8" and 1-1/2" straight and tapered steerers, use appropriate headset
- Material: 2.000" x .156 wall 1026 (indicated by groove on top of one end face) or 4130 steel tubing
- Length: 170 mm +0.25 mm (.010") - 0.5 mm (.020") / -0 to allow for facing after welding
- Relief:
- ID = 45 mm
- OD =
- Center relief is 1-7/8"
- Ends are 50 mm OD
- Bearing Bores:
- Supplied .5 mm (.020") undersize to allow for post-weld reaming
- Must be finished to size by the frame builder
Item sold individually.
333
3 Items
Data sheet
- Length
- 170
