SK4120
€53.95
Tax excluded
Shipped within 1 - 2 days

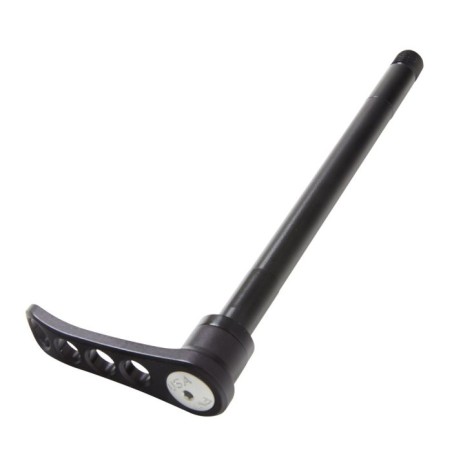

SK4120: SRAM Full Mount/UDH 142 x M12 x 1 Rear Spline Head Skewer for DR0072, DR0073, DR2073
Available in 5 colors
Paragon Machine Works
Item sold individually.
- Application: Paragon Machine Works 1-3/4" OD round, rear titanium SRAM Full Mount/UDH dropout DR0072, DR0073 AND DR2073
- Although this skewer will work with all our SRAM Full Mount/UDH dropouts/inserts IT IS INTENDED FOR USE WITH DR0072 AND DR0073 TO ACCOMMODATE FOR THE WIDER FLANGE WIDTH
- Material: Black anodized 6061 aluminum
- Function:
- By pulling the handle away from the skewer, the handle can easily be rotated to any of 22 positions; this allows for positioning the handle anywhere that is convenient, and for clearance of other components such as brakes or racks
- The 5 mm hex opposite the handle can be used to tighten the skewer more than what can be done with the handle alone. In the rare event that the handle fails, this hexagon can also be used to remove the skewer
- A handle design that is easier to pull, particularly with gloves on
- A spline that is integral to the skewer
- Thread: M12 x 1 x 12
- Nominal length (identified by width of hub): 142
- Actual length (from under skewer head to end of skewer): 172
- Internal Hexagon: 5 mm internal
- Brass Split Ring Washer: Included, installed on the inside face of the skewer to reduce galling
- Torque Spec: 8-12 N-m
