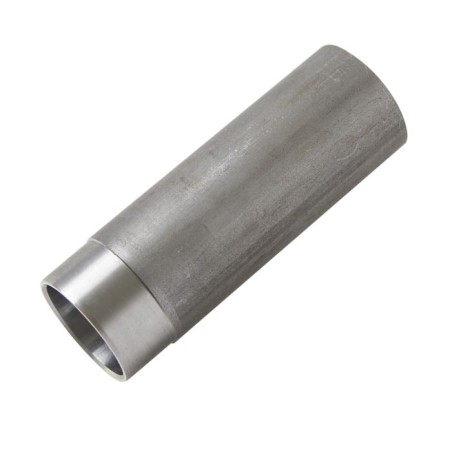

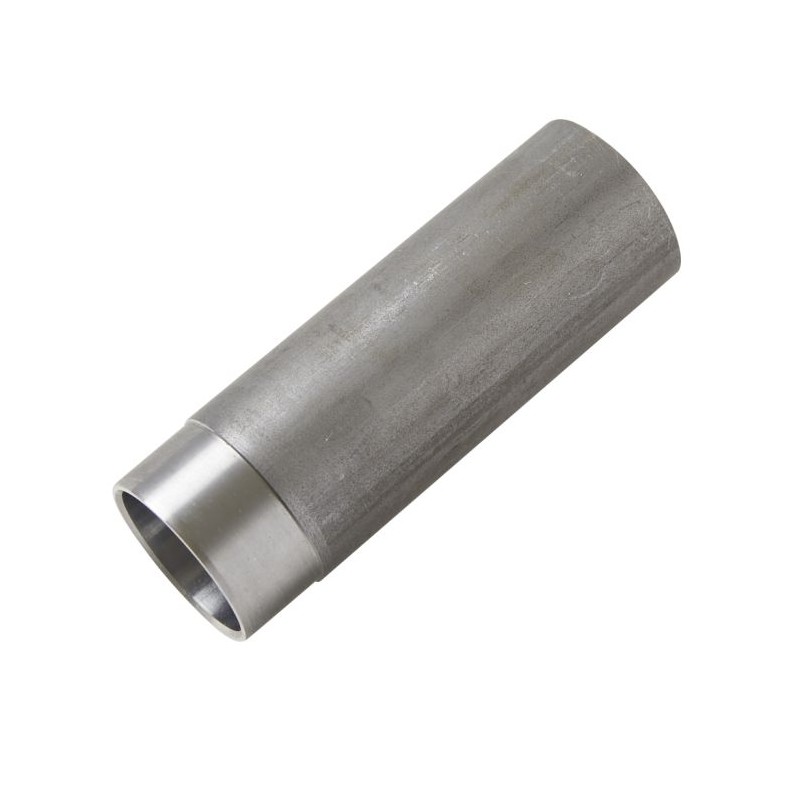

MS2068 Seat Collar
€18.65
Tax excluded
MS2068: 1-1/4" OD x 91 mm OAL x 27.2 mm ID x 15 mm Step, Relieved ID
Item sold individually. Outside of collar is untreated and rough.
Paragon Machine Works
- Application:
- For 1-1/4" OD x any wall thickness seat tube
- Step must be finished to size: .05 mm press fit in seat tube
- Minimum seat post insertion is 91 mm
- Seat post must go past the relief to avoid excess loads on the collar
- Material: 4130 steel, outside of collar is untreated and rough.
- OD: 1.250" OD
- ID: 27.2 mm (+0.00/-0.05 mm)
- Relieved ID provides space for weld penetration so that the finish reamer does not have to remove weld material and reduces weight
- Overall Length: 91 mm
- OD Step: 15 mm long x 30.8 mm diameter
- Step Length: 15 mm
